Locomotive
In the late 1990s, Xiangdian Heavy Equipment launched the 224t industrial and mining electric locomotive. The traction rate of this locomotive is more than 30% higher than that of the 150t vehicle, and it is specially designed for deep mining in large open-pit mines. The deep mining environment is complex and the locomotive power requirements are extremely high. The 224t industrial and mining electric locomotive relies on its powerful traction capacity to operate stably under harsh working conditions, and efficiently transports the mined ore, which effectively guarantees the smooth progress of deep mining operations in large open-pit mines.
From 80t to 224t, Xiangdian Heavy Equipment’s large standard-gauge electric locomotives have been continuously upgraded, making steady progress on the road of technological innovation and continuously injecting new vitality into the mining transportation industry.
General Specifications of Locomotive
| Output Power: | 1200-2400 kW |
| Hydraulic Oil Tank Capacity: | 740-1040L |
| Maximum Gradient: | 18% |
| Rated Gradient: | 8% |
| Maximum Speed: | 45-64.5 km/h |
| Vehicle Kerb Weight: | 90-210 t |
| Drive Type: | 4×2 Rear – axle drive |
| Overall Dimensions: | 11420×6100×5740-15000×9300×7600 |
Power Battery Model |
Voltage |
Maximum Discharge Rate |
| Large Standard Gauge Electric Locomotive | 3.22 V | 5C |
| ——END—— | ||
Locomotive Series
This is a list of all series of dump trucks.
Click here to find drive motor by type .

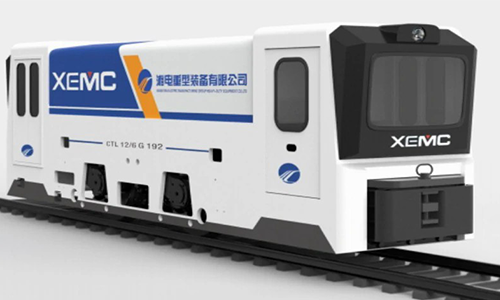

Underground Locomotive
Track Gauge: 457mm/600mm
Hourly Traction Force(KN): 2.55 – 22
Dimensions(mm): 2480*914*1550
Length*Width*Height: 5200*1400*2120

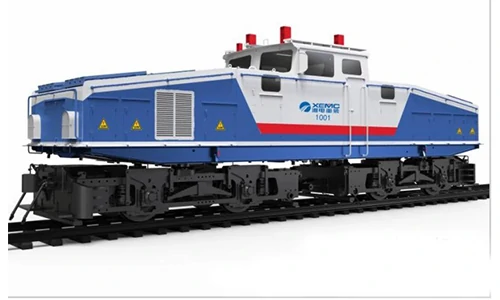

Large Standard Gauge Electric Locomotive
Voltageleve(v): 1500/Dual Power
Track Gauge: 1435mm
Hourly Traction Force(KN): 168
Dimensions(mm): 14760*3200*4270
