Battery Drive Water Truck
Electric wheel dump trucks use electricity as a power source, completely abandoning traditional fuel engines. This change enables the vehicle to achieve true “zero emissions” during operation, without the emission of pollutants such as carbon monoxide, nitrogen oxides, and particulate matter in the exhaust gas, greatly reducing the pollution to the atmospheric environment. Electric wheel dump trucks are usually equipped with high-performance electric motors that can output strong torque instantly. This makes the vehicle perform well during starting, climbing, and accelerating, with rapid power response, far exceeding traditional fuel dump trucks. From the perspective of energy consumption, electric wheel dump trucks have significant advantages over fuel dump trucks. The conversion efficiency of electricity is higher, and with the development of technology, the battery energy storage capacity continues to increase, the charging facilities are gradually improved, and the vehicle’s cruising range is also increasing.
General Specifications of Battery Drive Water Truck
| Output Power: | 1200-2400 kW |
| Hydraulic Oil Tank Capacity: | 740-1040L |
| Maximum Gradient: | 18% |
| Rated Gradient: | 8% |
| Maximum Speed: | 45-64.5 km/h |
| Vehicle Kerb Weight: | 90-210 t |
| Drive Type: | 4×2 Rear – axle drive |
| Overall Dimensions: | 11420×6100×5740-15000×9300×7600 |
Power Battery Model |
Voltage |
Maximum Discharge Rate |
Power Battery Model |
Voltage |
Maximum Discharge Rate |
||
| XEG100W Electric Drive Water Truck | 3.22 V | 5C | XEG240T Electric Drive Tow Truck | 3.22 V | 3.8C | ||
| ——END—— | |||||||
Battery Drive Water Truck Series
This is a list of all series of dump trucks.
Click here to find drive motor by type .

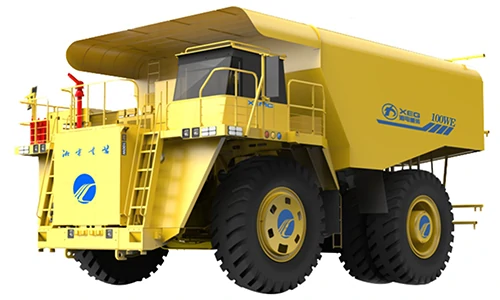

XEG100WE Battery Drive Water Truck
Drive Form: 4*2Rear Axle Drive
Rated Climbing Grade: 8%
Maximum Climbing Grade: 18%
Maximum Spend: 45kM/h
Rated Engine Power: 1000kW

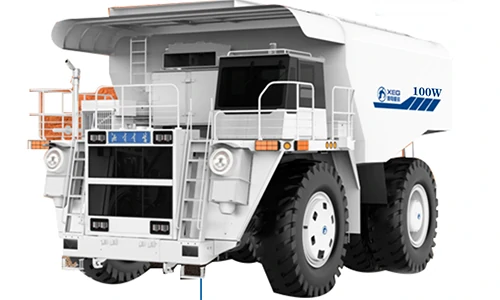

XEG100W Electric Drive Water Truck
Drive Form: 4*2Rear Axle Drive
Rated Climbing Grade: 8%
Maximum Climbing Grade: 18%
Maximum Spend: 45kM/h
Rated Engine Power: 895kW
