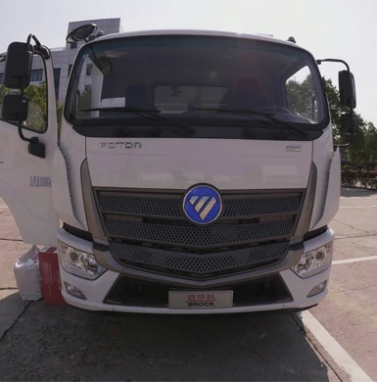

Brock BJ5184GQXEV-P2 Low-Pressure Washing Truck
BJ5184GQXEV-P2 low pressure cleaning truck adopts Foton environmental sanitation pure electric special vehicle chassis, product standard with duck mouth hedge, after sprinkling, green belt watering, anti-aircraft gun function, optional spray system, 360 around the function, suitable for urban main road, green belt, city square and other places spraying and watering operations, can also be used to aid fire and non-drinking water transportation. The car flush width is large, can wash 6-8 lanes at a time, the maximum flush width is more than 24 m, is a fully functional, easy to operate, high performance, high quality sanitation products.
Advantages of BJ5184GQXEV-P2
-
Zero emission, pure electric truck use electric energy, no exhaust emission during running, no pollution to the environment, high performance, low energy consumption, low cost, electricity consumption per 100 kilometers about 4.5 kWh /t·100 km.
-
The pipe is automatically formed by precision steel pipe CNC bending machine, which greatly reduces the welding of low pressure water pipe, avoids the pipe rust in the welding place and leads to water leakage, and improves the overall appearance of the pipe.
-
Optional front duck bill, hedge, 360 around, up and down spray, etc.
-
Foton environmental sanitation pure electric special vehicle chassis developed, strong bearing capacity, high reliability; Equipped with Nind age lithium iron phosphate power battery, power up to 246 kWh, strong power, low power consumption, low noise, smooth driving.
Technical Specifications
| Truck Model: | BJ5184GQXEV-P2 |
| Total Mass: | 18000 kg |
| Rated Load: | 8555 kg |
| Max.Cleaning Water Pressure: | 10 MPa |
| Spray Frame Cleaning Width: | 2.5-3.5 m |
| Front Wheel Base: | N/A |
| Basic Turck(L * W * H): | 7950/7770/7570/7350 mm * 2490 mm * 2900/2860 mm |
| Rear Wheel Base: | N/A |
| Max.Driving Speed: | 85 km/h |
| Front Rinse Width: | ≥24 m |
| Post Sprinkler Speed: | ≥14 m |
| Water Gun Range: | ≥50 m |
| Lead Time: | 15-30 Working Days |
| Payment Terms: | T/T ,L/C |
Model |
Total Mass |
Rated Load |
Maximum Driving Speed |
| BJ5072GQXE6-H2 | 18000 kg | 8820/8755 kg | 95 km/h |
| BJ5073GQXE6-P2 | 18000 kg | 8820/8755 kg | 95 km/h |
| BJ5165GQXE6-P2 | 16000 kg | 9390/9325 kg | 90 km/h |
| BJ5182GQXE6-H2 | 18000 kg | 10220/10155 kg | 90 km/h |
| BJ5182GQXE6-P2 | 18000 kg | 10200/10155 kg | 90 km/h |
| BJ5183GQXE6-P2 | 18000 kg | 11320/11255 kg | 90 km/h |
| BJ5184GQXE6-H2 | 18000 kg | 9770/9705 kg | 89 km/h |
| BJ5184GQXE6-P2 | 18000 kg | 9770/9705 kg | 89 km/h |
| BJ5185GQXE6-P2 | 18000 kg | 11000 kg | 105 km/h |
| BJ5252GQXE6-H2 | 25000 kg | 13570 kg | 89 km/h |
| BJ5184GQXEV-P2 | 18000 kg | 8555 kg | 85 km/h |
| BJ5184GQXEV-H2 | 18000 kg | 8555 kg | 85 km/h |
| BJ5182GQXNG-P2 | 18000 kg | 10005 kg | 89 km/h |
| ——END—— | |||
Foton Brock BJ5184GQXEV-P2 Low-Pressure Washing Truck Bodywork Parameter |
|||||
| The Max.Volume of the Tank | 8.98 m³ | Working Speed (Engine Speed 1500 RPM) | 6/12 RPM | ||
| Max.Cleaning Water Pressure | 10 Mpa | Spray Frame Cleaning Width | 2.5-3.5 m | ||
| Spray Frame Deflection Angle | 30 ° | Front Rinse Width | ≥24 m | ||
| Pump Working Pressure (Mpa) | N/A | Post Sprinkler Speed | ≥14 m | ||
| Cleaning Water Flow | 200-800 L/min | Water Gun Range | ≥50 m | ||
Foton Brock BJ5184GQXEV-P2 Low-Pressure Washing Truck low Pressure Water Pump Parameters |
|||||
| Low Pressure Pump Model | 65QZB(F)-50/110 N | Water Pump Spray Distance | 110 m | ||
| Rated Rotational Speed | 1480 RPM | Self-Priming Height | 6.5 m | Self-Priming Speed | 1.5 min/4 m |
| ——END—— | |||||
Coming Soon
Foton Brock BJ5184GQXEV-P2 Low-Pressure Washing Truck Bodywork Parameter |
|||||
| The Max.Volume of the Tank | 8.98 m³ | Working Speed (Engine Speed 1500 RPM) | 6/12 RPM | ||
| Max.Cleaning Water Pressure | 10 Mpa | Spray Frame Cleaning Width | 2.5-3.5 m | ||
| Spray Frame Deflection Angle | 30 ° | Front Rinse Width | ≥24 m | ||
| Pump Working Pressure (Mpa) | N/A | Post Sprinkler Speed | ≥14 m | ||
| Cleaning Water Flow | 200-800 L/min | Water Gun Range | ≥50 m | ||
Foton Brock BJ5184GQXEV-P2 Low-Pressure Washing Truck low Pressure Water Pump Parameters |
|||||
| Low Pressure Pump Model | 65QZB(F)-50/110 N | Water Pump Spray Distance | 110 m | ||
| Rated Rotational Speed | 1480 RPM | Self-Priming Height | 6.5 m | Self-Priming Speed | 1.5 Min/4 m |
| ——END—— | |||||
Optional Accessories of Foton Brock BJ5183GQXE6-P2 Roll-off Garbage Truck |
|||||
| 1. 304 Stainless Steel | 2. Aluminum Alloy Rear Platform | 3. Increase Rear Platform | |||
| 4. Tool Box (Iron) | 5. Toolbox (without) | 6. Front Duck Bill | |||
| 7. Front Duck Bill + Front Hedge | 8. Front Automatic Water Cannon | 9. Side Spray | |||
| 10. Upper Spray | 11. Hose Reel | 12. Without Self-Priming | |||
| 13. 360 | 14. Internet of Truck | ||||
| ——END—— | |||||
Note: All Above Data are Just for Reference, All Data Might Change Without Notices or Updates, Please Contact Our Sales Team to Confirm All Details Via WhatsApp or Email.
